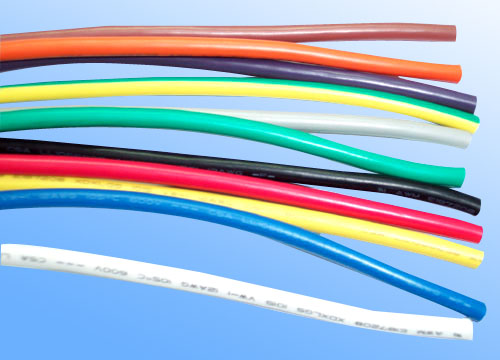

Product Description
Rated Voltage:150V, Rated temperature: 80°C.
Conductor: tinned or bare, stranded or solid copper, range from 32AWG to 16AWG.
Insulation: Lead Free/RoHS* XLPVC (irradiated).
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
*Note:
Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
For general purpose internal wiring of electronic and electrical equipment.
|
Part No. |
Conductor type |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom. Dia. |
Nom. Thick. |
Nom. Dia |
|
AWG |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
125801 |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.26 |
0.82 |
354.24 |
5.0 |
1300 |
 |
|
125802 |
28 |
7/0.127 |
0.38 |
0.26 |
0.90 |
223.75 |
 |
|
125803 |
26 |
7/0.127 |
0.38 |
0.26 |
1.00 |
136.73 |
 |
|
125804 |
24 |
11/0.16 |
0.61 |
0.26 |
1.13 |
93.3 |
 |
|
125805 |
22 |
17/0.16 |
0.76 |
0.26 |
1.28 |
55.0 |
 |
|
125806 |
20 |
26/0.16 |
0.94 |
0.30 |
1.54 |
34.6 |
 |
|
125807 |
18 |
41/0.16 |
1.18 |
0.33 |
1.84 |
21.8 |
 |
|
125808 |
16 |
26/0.254 |
1.49 |
0.35 |
2.19 |
13.7 |
 |
|
125809 |
Solid
Conductor |
26 |
1/0.404 |
0.404 |
0.26 |
0.92 |
142.79 |
5.0 |
1300 |
 |
|
125810 |
24 |
1/0.511 |
0.511 |
0.26 |
1.03 |
89.39 |
 |
|
125811 |
22 |
1/0.643 |
0.643 |
0.26 |
1.17 |
54.3 |
 |
|
125812 |
20 |
1/1.813 |
0.813 |
0.30 |
1.41 |
33.9 |
 |
|
125813 |
Overall
Tinned |
26 |
7/0.16 |
0.48 |
0.26 |
1.00 |
139.73 |
5.0 |
1300 |
 |
|
125814 |
24 |
7/0.203 |
0.61 |
0.26 |
1.13 |
86.0 |
 |
|
125815 |
22 |
7/0.254 |
0.76 |
0.26 |
1.28 |
54.8 |
 |
|
