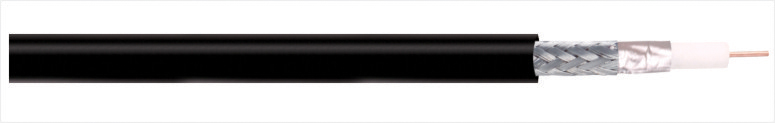

Digital TV and Satellite Cable

Product Description

Inner Conductor: solid Cu(Bare Copper) or CCS(Copper Clad Steel);

Insulation: Foamed PE by gas injection(physical foamed) PE;

Outer Conductor: Al/PET (aluminum-PET laminated) foil , or Al/PET/Al(aluminum-PET-aluminum laminated) and Cu(Bare Copper) or Cu-Sn(Tinned Copper) braiding , various of coverage;

Antimigrating: PET foil overlapped;

Jacket: PVC or PE



PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.



* Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000



Application

For digital TV connection and satellite system.





Part

No.

Reference

Inner conductor

Dielectric

Outer Conductor

Antimigrating

Outer Sheath

Specification

Sheet

MTR.

Nom.

Dia.

MTR.

Nom.

Dia.

Foil

Braid

Coverage

mm

mm

115001

MINISAT 36/42

CCS

0.40

PEE/PH



Cu-Sn Ø0.10mm

62%



PVC

3.60



115002

UC23/PH

Cu

0.75

PEE/PH

Al/PET

Cu-Sn Ø0.10mm

46%

PET

PVC

5.00



115003

19VAtC/PH

Cu

1.00

PEE/PH

Al/PET/Al

Cu-Sn Ø0.10mm

40%

PET

PVC

6.80



115004

17VAtC/PH

Cu

1.13

PEE/PH

Al/PET/Al

Cu-Sn Ø0.12mm

45%

PET

PVC

6.80



115005

21VAtCA/PH

CCS

1.02

PEE/PH

Al/PET/Al

Cu-Sn Ø0.10mm

36%

PET

PVC

6.80



115006

11PRtC/PH

Cu

1.70

PEE/PH

CuF

Cu   Ø0.15mm

56%

PET

PE

10.25



115007

11PAtC/PH

Cu

1.70

PEE/PH

Al/PET/Al

Cu-Sn Ø0.15mm

56%

PET

PE

10.25



115008

11VAtC/PH

Cu

1.70

PEE/PH

Al/PET/Al

Cu-Sn Ø0.15mm

56%

PET

PE

10.25





We can manufacture the other specifications according to your requirements, such as

Part

No.

Reference

Inner conductor

Dielectric

Outer Conductor

Antimigrating

Outer Sheath

Specification

Sheet

MTR.

mm

Foil

Braid

Coverage

MTR.

Nom.

Dia.

mm

mm

115015

19VAtC/DGS

Cu

1.00

PEE/PH

Al/PET/Al

Al   Ø0.12

70%

PET

PVC

6.80



115016

19PAtC/PH/80%

Cu

1.00

PEE/PH

Al/PET/Al

Cu-Sn Ø0.10

80%

PET

PE

6.80



115017

17VAtC/PH/85%

Cu

1.13

PEE/PH

Al/PET/Al

Cu-Sn Ø0.12

85%

PET

PVC

6.70



115018

17VAtC/PH/ST

Cu-Sn

1.13

PEE/PH

Al/PET/Al

Cu-Sn Ø0.12

38.4%

PET

PVC

6.70



115019

17PAtC/PH/85%

Cu

1.13

PEE/PH

Al/PET/Al

Cu-Sn Ø0.12

85%

PET

PE

6.70



115020

11PRtC/PH/85%

Cu

1.70

PEE/PH

CuF

Cu   Ø0.15

85%

PET

PE

10.25



115021

11PAtC/PH/85%

Cu

1.70

PEE/PH

Al/PET/Al

Cu-Sn Ø0.15

85%

PET

PE

10.25



115022

COAX C6

24VAtC/PH

Cu

0.75

PEE/PH

Al/PET/Al

Cu-Sn Ø0.10

43%

PET

PVC

5.90



115023

COAX C6

24PAtC/PH

Cu

0.75

PEE/PH

Al/PET/Al

Cu-Sn Ø0.10

43%

PET

PE

5.90





Note

PE: Polyethylene

PEE: Foamed Polyethylene

PEE/PH: Foamed Polyethylene by Gas injection

PVC: Polyethilchloride

Al: Aluminum

Cu: Bare Copper

Cu-Sn: Tinned Copper

CCS: Copper Clad Steel(Copperweld)

PET: Polyester foil

CuF: Overlapped longitudinally Copper foil

Cu/PET: Overlapped longitudinally Copper+PET foil

Al/PET: Overlapped longitudinally Al+PET foil

Al/PET/Al: Overlapped longitudinally AL+PET+AL foil

Ø Nominal Diameter
