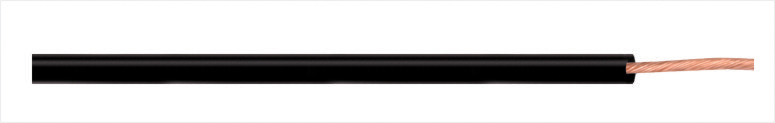

FLRY-A/B(QBV)

Product Description

Rated Voltage: not specified,  Rated temperature: 105°C.

Stranded, bare copper conductor, rang from 0.35 mm2 to 6.00 mm2.

Sole PVC insulation for automobile.

Passes VW 60306 flame test.

Uniform insulation thickness of wire to ensure easy stripping and cutting .

Resistant to acids, alkalis heat, cold, abrasions and oils.



RoHS Complaints(2002/95/EC)



Application

For internal wiring of vehicles maters circuits and electrical equipment in high temperature condition.



                                                                                                                                                                         FLRY-A/B(QBV)  105°C

Part No.

Style

Conductor

Insulation

Max

Resistance

At  20°C

Min

Insulation

Resistance

At 70°C

Dielectric

Strength

AC 30min

Specification

Sheet

Nom.

Area

No./mm

Dia.

Nom.

Thick.

Max.

Dia.

mm2

mm

mm

mm

mm

Ω/KM

Ω.KM

V



200501

FLRY-A

0.35

7/0.26

0.80

0.20

1.30-0.10

5.20

1010

1000



200502

0.50

19/0.19

1.00

0.22

1.60-0.20

37.10



200503

0.75

19/0.23

1.20

0.24

1.90-0.20

24.70



200504

1.00

19/0.26

1.35

0.24

2.10-0.20

18.50



200505

1.50

19/0.32

1.70

0.24

2.40-0.20

12.70



200506

FLRY- B

0.35

12/0.21

0.90

0.20

1.40-0.20

52.00

1010

1000



200507

0.50

16/0.21

1.00

0.22

1.60-0.20

37.10



200508

0.75

24/0.21

1.20

0.24

1.90-0.20

24.70



200509

1.00

32/0.21

1.35

0.24

2.10-0.20

18.50



200510

1.50

30/0.26

1.70

0.24

2.40-0.20

12.70



200511

2.00

41/0.26

1.95

0.28

2.80-0.20

9.31



200512

2.50

50/0.26

2.20

0.28

3.00-0.30

7.60



200513

3.00

45/0.31

2.40

0.28

3.20-0.30

6.21



200514

4.00

56/0.31

2.75

0.32

3.70-0.30

4.70



200515

6.00

84/0.31

3.30

0.32

4.30-0.30

3.10
