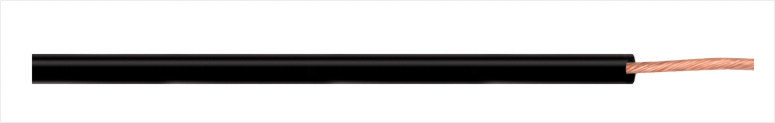

Product Description
Rated Voltage: not specified, Rated temperature: 105°C.
Stranded, bare copper conductor, rang from 0.50 mm2 to 20 mm2.
Sole PVC insulation for automobile.
Passes JIS C 3406 ? 93 flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis heat, cold, abrasions and oils.
RoHS Complaints(2002/95/EC)
Application
For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition.
AV 1050C
|
Part
No. |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Nom. Area |
No. |
Dia. |
Nom.
Thick. |
Nom.
Dia. |
Max. Dia. |
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Ω /km |
V |
|
200201 |
0.50f |
20/0.18 |
1.00 |
0.60 |
2.20 |
2.40 |
36.70 |
1000 |
 |
|
200202 |
0.50 |
7/0.32 |
1.00 |
2.20 |
2.40 |
32.70 |
|
|
200203 |
0.75f |
30/0.18 |
1.20 |
2.40 |
2.60 |
24.40 |
|
|
200204 |
0.85 |
11/0.32 |
1.20 |
2.40 |
2.60 |
20.80 |
|
|
200205 |
1.25f |
50/0.18 |
1.50 |
2.70 |
2.90 |
14.70 |
|
|
200206 |
1.25f |
16/0.32 |
1.50 |
2.70 |
2.90 |
14.30 |
|
|
200207 |
2.00 |
26/0.32 |
1.90 |
3.10 |
3.40 |
8.81 |
|
|
200208 |
3.00 |
41/0.32 |
2.40 |
0.70 |
3.80 |
4.10 |
5.59 |
|
|
200209 |
5.00 |
65/0.32 |
3.00 |
0.80 |
4.60 |
4.90 |
2.52 |
|
|
200210 |
8.00 |
50/0.45 |
3.70 |
0.90 |
5.50 |
5.80 |
2.32 |
|
|
200211 |
15.00 |
84/0.45 |
4.80 |
1.10 |
7.00 |
7.40 |
1.38 |
|
|
200212 |
20.00 |
41/0.80 |
6.00 |
8.20 |
8.80 |
8.87 |
| |
