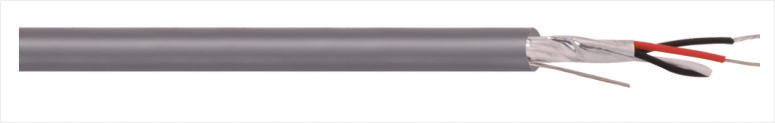

Product Description
Rated Voltage 300V , Rated Temperature 80°C
Inner Conductor: Tinned Copper
Insulation: Color-Coded PVC, Color Code: Chart K ,
Shield: Overall Aluminum/Polyester Foil overlapped, Foil Facing Outward.
Drain Wire: Stranded Tinned Copper.
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
For audio, control and instrumentation equipment and appliances.
Specifications according to UL2464, 300V 80°C
|
Part No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No.of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
142101 |
9501 |
5471C |
C0600 |
24AWG(7/0.20mm) |
1 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
4.10 |
 |
|
142102 |
9502 |
5472C |
C0601 |
24AWG(7/0.20mm) |
2 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
5.30 |
 |
|
142103 |
9503 |
5473C |
C0602 |
24AWG(7/0.20mm) |
3 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
5.80 |
 |
|
142104 |
9504 |
5474C |
C0603 |
24AWG(7/0.20mm) |
4 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
6.10 |
 |
|
142105 |
9505 |
5475C |
C0604 |
24AWG(7/0.20mm) |
5 |
0.254 |
24AWG(7/0.20mm) |
0.89 |
6.90 |
 |
|
142106 |
9506 |
5476C |
C0605 |
24AWG(7/0.20mm) |
6 |
0.254 |
24AWG(7/0.20mm) |
0.89 |
7.60 |
 |
|
142107 |
9507 |
5477C |
C0606 |
24AWG(7/0.20mm) |
7 |
0.254 |
24AWG(7/0.20mm) |
0.89 |
7.60 |
 |
|
142108 |
9508 |
5478C |
C0607 |
24AWG(7/0.20mm) |
8 |
0.254 |
24AWG(7/0.20mm) |
0.89 |
8.10 |
 |
|
142109 |
9509 |
5479C |
C0608 |
24AWG(7/0.20mm) |
9 |
0.254 |
24AWG(7/0.20mm) |
0.94 |
8.60 |
 |
|
142110 |
9510 |
5480C |
C0609 |
24AWG(7/0.20mm) |
10 |
0.254 |
24AWG(7/0.20mm) |
1.02 |
9.60 |
 |
|
142111 |
9515 |
5480/15C |
C0610 |
24AWG(7/0.20mm) |
15 |
0.254 |
24AWG(7/0.20mm) |
1.02 |
10.80 |
 |
|
142112 |
9519 |
5480/19C |
C0611 |
24AWG(7/0.20mm) |
19 |
0.254 |
24AWG(7/0.20mm) |
1.02 |
11.40 |
 |
|
142113 |
9125 |
5480/25C |
C0612 |
24AWG(7/0.20mm) |
25 |
0.254 |
24AWG(7/0.20mm) |
1.14 |
13.40 |
 |
|
142114 |
9550 |
5480/50C |
|
24AWG(7/0.20mm) |
50 |
0.254 |
24AWG(7/0.20mm) |
1.35 |
17.80 |
 |
|
Part No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
142115 |
9302 |
5902C |
|
22AWG(7/0.254mm) |
2 |
0.33 |
24AWG(7/0.20mm) |
0.81 |
5.60 |
 |
|
142116 |
9305 |
5905C |
|
22AWG(7/0.254mm) |
4 |
0.33 |
24AWG(7/0.20mm) |
0.81 |
6.70 |
 |
|
142117 |
9306 |
5906C |
|
22AWG(7/0.254mm) |
6 |
0.33mm |
24AWG(7/0.20mm) |
0.89 |
8.10 |
 |
|
142118 |
9309 |
5909C |
|
22AWG(7/0.254mm) |
9 |
0.33mm |
24AWG(7/0.20mm) |
0.94 |
9.40 |
 |
|
142119 |
9315 |
5909/15C |
|
22AWG(7/0.254mm) |
15 |
0.33mm |
24AWG(7/0.20mm) |
1.02 |
11.10 |
 |
|
142120 |
9319 |
5909/19C |
|
22AWG(7/0.254mm) |
19 |
0.33mm |
24AWG(7/0.20mm) |
1.02 |
12.00 |
 |
|
Part No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
|
Nom.
Thick |
Nom.
Dia. |
|
|
mm |
|
|
mm |
mm |
|
|
142121 |
9302 |
5902C |
|
22AWG(7/0.254mm) |
2 |
0.33mm |
24AWG(7/0.20mm) |
0.81mm |
5.60mm |
 |
|
|
Part No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
142122 |
|
2241C |
|
18AWG(16/0.254mm) |
1 |
0.40 |
20AWG(10/0.254mm) |
0.81 |
5.60 |
 |
|
142123 |
|
2242C |
|
18AWG(16/0.254mm) |
2 |
0.40 |
20AWG(10/0.254mm) |
0.89 |
8.60 |
 |
|
142124 |
|
2243C |
|
18AWG(16/0.254mm) |
3 |
0.40 |
20AWG(10/0.254mm) |
0.94 |
9.10 |
 |
|
142125 |
|
2244CC |
|
18AWG(16/0.254mm) |
4 |
0.40 |
20AWG(10/0.254mm) |
1.02 |
10.20 |
 |
|
142126 |
|
2245C |
|
18AWG(16/0.254mm) |
5 |
0.40 |
20AWG(10/0.254mm) |
1.14 |
11.10 |
 |
|
142127 |
|
2246C |
|
18AWG(16/0.254mm) |
6 |
0.40 |
20AWG(10/0.254mm) |
1.14 |
12.30 |
 |
|
142128 |
|
2248C |
|
18AWG(16/0.254mm) |
8 |
0.40 |
20AWG(10/0.254mm) |
1.27 |
13.70 |
 |
|
142129 |
|
2249C |
|
18AWG(16/0.254mm) |
9 |
0.40 |
20AWG(10/0.254mm) |
1.40 |
14.90 |
 |
|
142130 |
|
2249/12C |
|
18AWG(16/0.254mm) |
12 |
0.40 |
20AWG(10/0.254mm) |
1.40 |
16.70 |
 |
|
142131 |
|
2249/19C |
|
18AWG(16/0.254mm) |
19 |
0.40 |
20AWG(10/0.254mm) |
1.78 |
20.20 |
 |
