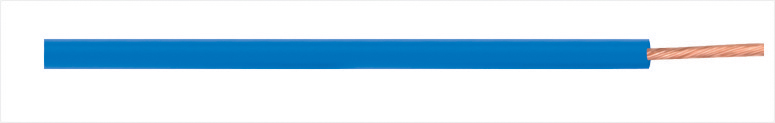

Product Description
Rated Voltage: UL, CSA 600V r.m.s. , BS6231 (Uo/U) 600/1000V r.m.s.
Rated temperature: 105℃(BS max. conductor operating 90℃ for continuous use, with a limit of 15000 hours at 105℃)
Conductor : Flexible stranded plain annealed copper wire(Class 5)
Insulation: Plasticised Lead Free/RoHS* 105℃ PVC comply with the UL, CSA Standard tests.
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
RoHS Complaints(2002/95/EC)
Tri-rated Cable Lead Free/RoHS
|
Part No. |
Conductor |
Nom. Overall Dia. |
UL Equivalent |
Max. Resistance
at 20℃ |
Max.
Current Rating |
Specification
Sheet |
|
Nom. Cross
Sectional |
Approx.
AWG |
No. |
Nom.. Dia. |
|
mm2 |
mm |
mm |
mm |
Ω/KM |
A |
|
128001 |
0.50 |
22 |
16/0.20 |
0.93 |
2.70 |
1015 |
37.10 |
11 |
|
|
128002 |
0.75 |
20 |
24/0.20 |
1.14 |
2.90 |
1015 |
24.70 |
14 |
|
|
128003 |
1.00 |
18 |
32/0.20 |
1.32 |
3.10 |
1015 |
18.50 |
17 |
|
|
128004 |
1.50 |
16 |
30/0.25 |
1.60 |
3.40 |
1015 |
12.70 |
21 |
|
|
128005 |
2.50 |
14 |
50/0.25 |
2.00 |
3.80 |
1015 |
7.60 |
30 |
|
|
128006 |
4.00 |
12 |
56/0.30 |
2.60 |
4.40 |
1015 |
4.71 |
41 |
|
|
128007 |
6.00 |
10 |
84/0.30 |
3.30 |
5.10 |
1015 |
3.14 |
53 |
|
|
128008 |
10.00 |
8 |
80/0.40 |
4.20 |
7.20 |
1028 |
1.82 |
75 |
|
|
128009 |
16.00 |
6 |
128/0.40 |
5.70 |
9.00 |
1283 |
1.16 |
100 |
|
|
128010 |
25.00 |
4 |
200/0.40 |
7.10 |
10.60 |
1283 |
0.743 |
136 |
|
|
128011 |
35.00 |
2 |
280/0.40 |
8.50 |
12.00 |
1283 |
0.527 |
167 |
|
|
128012 |
50.00 |
1 |
400/0.40 |
10.30 |
14.70 |
1284 |
0.36 |
204 |
|
|
128013 |
70.00 |
2/0 |
360/0.50 |
12.40 |
16.80 |
1284 |
0.259 |
259 |
|
|
128014 |
95.00 |
3/0 |
485/0.50 |
14.50 |
18.90 |
1284 |
0.196 |
321 |
|
|
128015 |
120.00 |
4/0 |
614/0.50 |
16.00 |
20.40 |
1284 |
0.153 |
374 |
|
Note
Our UL1015 , UL1028 and UL1283 are approval by UL&CSA, UL1284 is not approval, but we can manufacture according to UL&CSA standard requirements
Colour Availability
|
0.50mm2 - 2.50 mm2 |
Black, Red, Blue, Brown, Yellow, Grey, White, Green/Yellow, Orange, Pink, Violet |
|
4.00 mm2 - 16.00 mm2 |
Black, Red, Blue, Brown, Yellow, Grey, White, Green/Yellow |
|
25.00 mm2 - 50.00 mm2 |
Black, Red, Blue, Yellow, Green/Yellow |
|
70.00 mm2 |
Black, Red, Green/Yellow |
|
95.00 mm2 |
Black, Red |
|
120.00 mm2 |
Black | |
