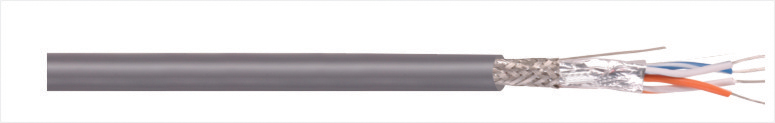

Product Description
Rated Voltage 300V , Rated Temperature 80°C
Inner Conductor: Tinned Copper
Insulation: Color-Coded SRPVC,
Color Code: Chart A for Mutipair Cable of conductor 28AWG(7/0.13mm) and 22AWG(7/0.254mm) ,
Chart M for Mutipair Cable of conductor 24AWG(7/0.20mm),
Shield: Overall Aluminum/Polyester Foil overlapped and Overall Tinned Copper Braid(Coverage 65%), Foil Facing Outward.
Drain Wire: Stranded Tinned Copper.
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
Computer Interconnects
EIA RS-232
CAD/CAM System
Specifications according to UL2464, 300V 80°C
|
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No.of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
143101 |
|
3472C |
|
28AWG(7/0.13mm) |
2 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
5.30 |
 |
|
143102 |
|
3474C |
|
28AWG(7/0.13mm) |
4 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
6.30 |
 |
|
143103 |
|
3475C |
|
28AWG(7/0.13mm) |
5 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
6.60 |
 |
|
143104 |
|
3476C |
|
28AWG(7/0.13mm) |
6 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
6.80 |
 |
|
143105 |
|
3477C |
|
28AWG(7/0.13mm) |
7 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
6.80 |
 |
|
143106 |
|
3480C |
|
28AWG(7/0.13mm) |
10 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
8.30 |
 |
|
143107 |
|
3480/12C |
|
28AWG(7/0.13mm) |
121/2 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
8.60 |
 |
|
143108 |
|
3480/18C |
|
28AWG(7/0.13mm) |
18 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
9.70 |
 |
|
143109 |
|
3480/25C |
|
28AWG(7/0.13mm) |
25 |
0.254 |
28AWG(7/0.13mm) |
0.89 |
11.50 |
 |
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
|
Nom.
Thick |
Nom.
Dia. |
|
|
mm |
|
|
mm |
mm |
|
|
14311 |
8332 |
6362 |
|
24AWG(7/0.20mm) |
2 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
6.40 |
 |
|
|
143102 |
8333 |
6363 |
|
24AWG(7/0.20mm) |
3 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
6.70 |
 |
|
|
143103 |
8334 |
6364 |
|
24AWG(7/0.20mm) |
4 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
7.40 |
 |
|
|
143104 |
8335 |
6365 |
|
24AWG(7/0.20mm) |
5 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
7.50 |
 |
|
|
143105 |
8336 |
6366 |
|
24AWG(7/0.20mm) |
6 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
7.90 |
 |
|
|
143106 |
8337 |
6367 |
|
24AWG(7/0.20mm) |
7 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
8.20 |
 |
|
|
143107 |
8340 |
6368 |
|
24AWG(7/0.20mm) |
10 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
9.80 |
 |
|
|
143108 |
8342 |
6369 |
|
24AWG(7/0.20mm) |
121/2 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
10.30 |
 |
|
|
143109 |
8345 |
6370 |
|
24AWG(7/0.20mm) |
15 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
11.30 |
 |
|
|
143110 |
8348 |
6371 |
|
24AWG(7/0.20mm) |
18 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
12.20 |
 |
|
|
143111 |
8355 |
6372 |
|
24AWG(7/0.20mm) |
25 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
13.40 |
 |
|
|
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
143112 |
8302 |
6373 |
|
22AWG(7/0.254mm) |
2 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
6.60 |
 |
|
143113 |
8303 |
6374 |
|
22AWG(7/0.254mm) |
3 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
7.50 |
 |
|
143114 |
8304 |
6375 |
|
22AWG(7/0.254mm) |
4 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
8.10 |
 |
|
143115 |
8305 |
6376 |
|
22AWG(7/0.254mm) |
5 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
8.20 |
 |
|
143116 |
8306 |
6377 |
|
22AWG(7/0.254mm) |
6 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
8.90 |
 |
|
143117 |
8307 |
6378 |
|
22AWG(7/0.254mm) |
7 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
9.70 |
 |
|
143118 |
8308 |
6379 |
|
22AWG(7/0.254mm) |
8 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
11.10 |
 |
|
143119 |
8310 |
6380 |
|
22AWG(7/0.254mm) |
10 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
11.50 |
 |
|
143120 |
8312 |
6381 |
|
22AWG(7/0.254mm) |
121/2 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
12.50 |
 |
|
143121 |
8315 |
6382 |
|
22AWG(7/0.254mm) |
15 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
12.70 |
 |
|
143122 |
8318 |
6383 |
|
22AWG(7/0.254mm) |
18 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
13.60 |
 |
|
143123 |
8325 |
6384 |
|
22AWG(7/0.254mm) |
25 |
0.254 |
24AWG(7/0.20mm) |
0.81 |
15.70 |
 |
|
