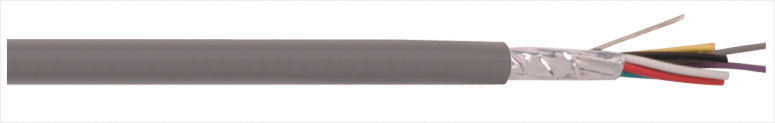

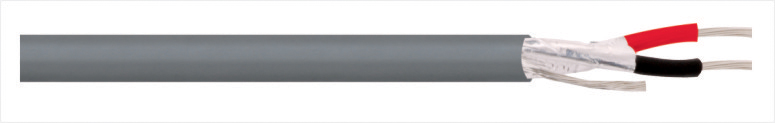

Product Description
Rated Voltage 300V , Rated Temperature 80°C
Inner Conductor: Tinned Copper
Insulation: Color-Coded PVC, Color Code: Chart D
Shield: Overall Aluminum/Polyester Foil overlapped, Foil Facing Outward.
Drain Wire: Stranded Tinned Copper.
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
For audio, control and instrumentation equipment and appliances.
Specifications according to UL2576 300V 80°C
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Conductor |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Thick |
Nom.
Dia. |
|
mm |
mm |
|
132301 |
|
1212C |
|
24AWG
(7/0.20mm) |
2 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
3.90 |
 |
|
132302 |
|
1213C |
|
24AWG
(7/0.20mm) |
3 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
4.20 |
 |
|
132303 |
|
1214C |
|
24AWG
(7/0.20mm) |
4 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
4.70 |
 |
|
132304 |
|
1215C |
|
24AWG
(7/0.20mm) |
5 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
4.70 |
 |
|
132305 |
|
1216C |
|
24AWG
(7/0.20mm) |
6 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
5.10 |
 |
|
132306 |
|
1217C |
|
24AWG
(7/0.20mm) |
7 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
5.10 |
 |
|
132307 |
|
1218C |
|
24AWG
(7/0.20mm) |
8 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
5.40 |
 |
|
132308 |
|
1219C |
|
24AWG
(7/0.20mm) |
9 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
5.60 |
 |
|
132309 |
|
1219/10C |
|
24AWG
(7/0.20mm) |
10 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
5.90 |
 |
|
132310 |
|
1219/12C |
|
24AWG
(7/0.20mm) |
12 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
6.90 |
 |
|
132311 |
|
1219/15C |
|
24AWG
(7/0.20mm) |
15 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
7.10 |
 |
|
132312 |
|
1219/20C |
|
24AWG
(7/0.20mm) |
20 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
7.70 |
 |
|
132313 |
|
1219/25C |
|
24AWG
(7/0.20mm) |
25 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
8.40 |
 |
|
132314 |
|
1219/37C |
|
24AWG
(7/0.20mm) |
37 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
10.00 |
 |
|
132315 |
|
1219/40C |
|
24AWG
(7/0.20mm) |
40 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
10.30 |
 |
|
132316 |
|
1219/50C |
|
24AWG
(7/0.20mm) |
50 |
0.25mm |
24AWG
(7/0.20mm) |
0.81 |
11.30 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Conductor |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
|
Thick |
Nom.
Dia. |
|
|
mm |
|
|
mm |
mm |
|
|
132317 |
|
1292C |
|
22AWG
(7/0.254mm) |
2 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
4.20 |
 |
|
|
132318 |
|
1293C |
|
22AWG
(7/0.254mm) |
3 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
4.60 |
 |
|
|
132319 |
|
1294C |
|
22AWG
(7/0.254mm) |
4 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
4.90 |
 |
|
|
132320 |
|
1295C |
|
22AWG
(7/0.254mm) |
5 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
5.10 |
 |
|
|
132321 |
|
1296C |
|
22AWG
(7/0.254mm) |
6 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
5.40 |
 |
|
|
132322 |
|
1297C |
|
22AWG
(7/0.254mm) |
7 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
5.40 |
 |
|
|
132323 |
|
1298C |
|
22AWG
(7/0.254mm) |
8 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
5.70 |
 |
|
|
132324 |
|
1299C |
|
22AWG
(7/0.254mm) |
9 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
6.30 |
 |
|
|
132325 |
|
1299/10C |
|
22AWG
(7/0.254mm) |
10 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
6.90 |
|
|
|
132326 |
|
1299/12C |
|
22AWG
(7/0.254mm) |
12 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
7.10 |
 |
|
|
132327 |
|
1299/15C |
|
22AWG
(7/0.254mm) |
15 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
7.60 |
|
|
|
132328 |
|
1299/20C |
|
22AWG
(7/0.254mm) |
20 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
8.40 |
 |
|
|
132329 |
|
1299/25C |
|
22AWG
(7/0.254mm) |
25 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
9.40 |
 |
|
|
132330 |
|
1299/30C |
|
22AWG
(7/0.254mm) |
30 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
9.90 |
 |
|
|
132331 |
|
1299/37C |
|
22AWG
(7/0.254mm) |
37 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
10.80 |
 |
|
|
132332 |
|
1299/40C |
|
22AWG
(7/0.254mm) |
40 |
0.25 |
22AWG
(7/0.254mm) |
0.81 |
11.20 |
 |
|
|
132333 |
|
1299/50C |
|
22AWG
(7/0.254mm) |
50 |
0.25 |
22AWG
(7/0.254mm) |
0.89 |
12.20 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
