Product Description
Manufacturing Specifications: DIN VDE0281
Rated Voltage Uo/U: 450/750V, Amp. Rating: As Specified, Max. Temp:90°C
Conductor: flexible bare copper;
Insulation: colour coded PVC;

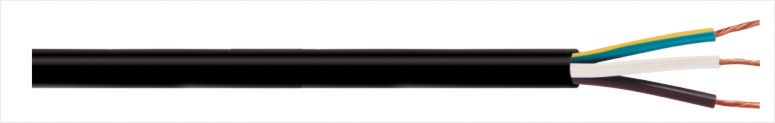

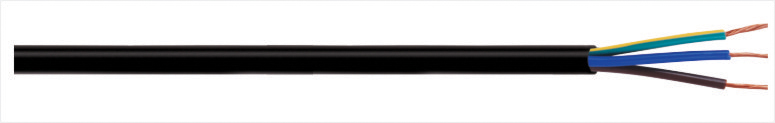

Jacket: black PVC, round cable
Resistant to ozone, oxygen, UV rays and all common PVC resistance.
Lead Free/RoHS* version is available, too, please contact us for more details.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances(Lead Free, Cadmium Free, Mercury Free & Chromium Free, PBB & PBDE Free)
Application
For connection of household appliances, electrical tools and devices to power supply networks with rated
voltage U0/U -450/750V, Max. Temp:90°C.
H05V2V2-F 300/500 V 90°C
|
Part
No. |
Product Type |
Core No. X mm2 |
Conductor |
Insulation |
Jacket |
Maximum
Resistance
at 20°C |
Specification
Sheet |
|
|
No./mm |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia. |
|
|
|
mm |
mm |
mm |
mm |
mm |
Ω/KM |
|
|
192035 |
H05V2V2-F
|
2 X 0.75 |
42/0.15 |
1.13 |
0.60 |
2.35 |
0.80 |
6.30 |
26.00 |
|
|
|
192036 |
2 X1.00 |
32/0.20 |
1.30 |
0.60 |
2.55 |
0.80 |
6.80 |
19.50 |
|
|
|
192037 |
2 X 1.25 |
40/0.20 |
1.46 |
0.80 |
2.90 |
0.80 |
7.40 |
15.60 |
|
|
|
192038 |
2 X 1.50 |
30/0.254 |
1.58 |
0.70 |
3.00 |
0.80 |
7.80 |
13.30 |
|
|
|
192039 |
2 X 2.50 |
50/0.254 |
2.02 |
0.80 |
3.65 |
1.0 |
9.30 |
7.98 |
 |
|
|
192040 |
3 G 0.75 |
42/0.15 |
1.13 |
0.60 |
2.35 |
0.80 |
7.00 |
26.0 |
|
|
|
192041 |
3 G 1.00 |
32/0.20 |
1.30 |
0.60 |
2.55 |
0.80 |
7.20 |
19.50 |
|
|
|
192042 |
3 G 1.50 |
30/0.254 |
1.58 |
0.70 |
3.00 |
0.90 |
8.30 |
13.30 |
|
|
|
192043 |
3 G 2.50 |
50/0.254 |
2.02 |
0.80 |
3.65 |
1.10 |
10.10 |
7.98 |
|
| |
