Product Description
Manufacturing Specifications: DIN VDE0281
Rated Voltage Uo/U:300/500V, Amp. Rating: As Specified, Max. Temp:60°C
Conductor: flexible bare copper;
Insulation: colour coded EPR rubber;
Jacket: black EPR rubber ,round cable
Resistant to ozone, oxygen, UV rays. Good water rain resistance.
Lead Free/RoHS* version is available, too, please contact us for more details.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances(Lead Free, Cadmium
Free, Mercury Free & Chromium Free, PBB & PBDE Free)
Application
For Connection of household appliances or electrical devices to power supply networks with rated
voltage U0/U -300/500V, Max. Temp:60°C.

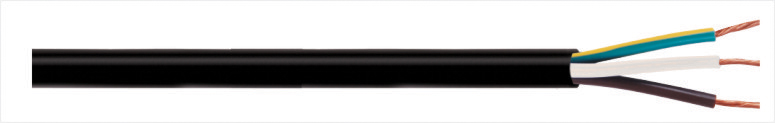

H05RR-F 300/500V 60°C
|
Part
No. |
Product Type |
Core No.X mm2 |
Conductor |
Insulation |
Jacket |
Maximum
Resistance
at 20°C |
Specification
Sheet |
|
No./mm |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia. |
|
mm |
mm |
mm |
mm |
mm |
Ω/KM |
|
192090 |
H05RR-F |
2X0.75 |
42/0.15 |
1.13 |
0.60 |
|
0.80 |
6.10 |
26.0 |
|
|
192091 |
2X1.00 |
32/0.20 |
1.30 |
0.60 |
|
0.90 |
6.60 |
19.50 |
|
|
192092 |
2X1.50 |
30/0.254 |
1.58 |
0.80 |
|
1.00 |
8.10 |
13.30 |
 |
|
192093 |
2X2.50 |
50/0.254 |
2.02 |
090 |
|
1.10 |
9.60 |
7.98 |
|
|
192094 |
3G0.75 |
42/0.15 |
1.13 |
0.60 |
|
0.90 |
6.65 |
26.0 |
|
|
192095 |
3G1.00 |
32/0.20 |
1.30 |
0.60 |
|
0.90 |
7.00 |
19.50 |
|
|
192096 |
3G1.50 |
30/0.254 |
1.58 |
0.80 |
|
1.00 |
8.60 |
13.30 |
|
|
192097 |
3G2.50 |
50/0.254 |
2.02 |
0.90 |
|
1.10 |
10.25 |
7.98 |
|
|
192098 |
4G0.75 |
42/0.15 |
1.13 |
0.60 |
|
0.90 |
7.25 |
26.0 |
|
|
192099 |
4G1.00 |
32/0.20 |
1.30 |
0.60 |
|
0.09 |
7.60 |
19.50 |
|
|
192100 |
4G1.50 |
30/0.254 |
1.58 |
0.80 |
|
1.10 |
9.60 |
13.30 |
|
|
192101 |
4G2.50 |
50/0.254 |
2.02 |
090 |
|
1.20 |
11.40 |
7.98 |
 |
|
192102 |
5G0.75 |
42/0.15 |
1.13 |
0.60 |
|
1.00 |
8.10 |
26.0 |
|
|
192103 |
5G1.00 |
32/0.20 |
1.30 |
0.60 |
|
1.00 |
8.50 |
19.50 |
 |
|
192104 |
5G1.50 |
30/0.254 |
1.58 |
0.80 |
|
1.10 |
10.50 |
13.30 |
|
|
192105 |
5G2.50 |
50/0.254 |
2.02 |
0.90 |
|
1.30 |
12.65 |
7.98 |
|
|
