Product Description
Rated Temperature: 600C, 750C
Inner Conductor: bare solid or stranded copper,
Insulation: color coded PE insulation;
Drain Wire: bare solid or stranded copper;
Mylar Tape: transparent PET Mylar tape overlapped;
Shield: Aluminum/Polyester Foil overlapped, 100% coverage;
Braiding: bare copper wire braiding;
Ripcord : (Optional)
Jacket : PVC.
Standards: ISO/IEC 11801,ANSI/TIA/EIA-568A
*PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances(Lead Free, Cadmium Free,
Mercury Free & Chromium Free, PBB & PBDE Free)
Application
Used as work-station outlet to the FD/IDF
And other horizontal cabling, supporting TP-PMD Audio,
Integrated service digital network(ISDN),ATM155 Mbps,
100mbps TPDDI, Fast Ether-net etc.

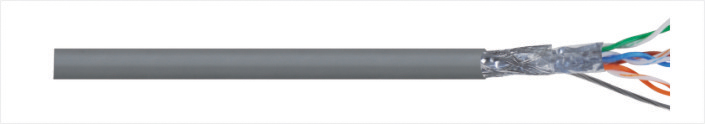

Cable Construction (S-FTP CAT5 solid conductor)
|
Part No. |
Specifications |
Conductor Dia.
(mm) |
Core Dia.
(mm) |
No. of Pairs |
Shielding |
Nom O.D.
(mm) |
|
|
|
221301 |
S-FTP |
0.53 |
1.00 |
4 |
Al Foil + Cu Braiding |
6.6 |
|
ELECTRICAL CHARACTERISTICS(S-FTP CAT5 solid conductor)
|
Frequency
(MHz) |
Impedance
(Ohm) |
Return Loss
(dB) |
Attenuation
(dB/100m) |
Next Worst Pair
(dB) |
Next Power Sum
(dB) |
ELFEXT Worst
Pair (dB) |
Nominal Velocity
of Propagation
|
|
0.772 |
100±15 |
16.70 |
1.80 |
64.00 |
64.00 |
63.00 |
0.65 |
|
1.00 |
17.00 |
2.10 |
62.30 |
62.30 |
60.80 |
|
4.00 |
18.80 |
4.30 |
53.30 |
53.30 |
48.70 |
|
8.00 |
19.70 |
5.90 |
48.80 |
48.80 |
42.70 |
|
10.00 |
20.00 |
6.60 |
47.30 |
47.30 |
40.80 |
|
16.00 |
20.00 |
8.20 |
44.30 |
44.30 |
36.70 |
|
20.00 |
20.00 |
9.20 |
42.80 |
42.80 |
34.70 |
|
25.00 |
19.30 |
10.50 |
41.30 |
41.30 |
32.80 |
|
31.25 |
18.60 |
11.80 |
39.90 |
39.90 |
30.90 |
|
62.50 |
16.50 |
17.10 |
35.40 |
35.40 |
24.80 |
|
100.00 |
15.10 |
22.00 |
32.30 |
32.30 |
20.80 |
CABLE CONSTRUCTION (PATCH CABLE S-FTP CAT5 - AWG 26)
|
Part No. |
Specifications |
Conductor Dia.
(mm) |
Core Dia.
(mm) |
No. of Pairs |
Shielding |
Nom O.D.
(mm) |
|
221302 |
Patch S-FTP AWG 26 |
7/0.16 |
0.86 |
4 |
Al Foil + Cu Braiding |
5.6 |
ELECTRICAL CHARACTERISTICS (PATCH CABLE S-FTP CAT5 - AWG 26)
|
Frequency /MHz |
Impedance /ohm |
RL /dB |
Attenuation
dB/100m |
Next Worst Pair
/dB |
Next Power Sum /dB |
ELFEXT Worst
Pair /dB |
Nominal Velocity
Propagation |
|
|
|
0.772 |
100 15 |
16.7 |
2.7 |
64.0 |
64.0 |
63.0 |
0.65 |
|
|
1.0 |
17.0 |
3.1 |
62.3 |
62.3 |
60.8 |
|
|
4.0 |
18.8 |
6.1 |
53.3 |
53.3 |
48.7 |
|
|
8.0 |
19.7 |
8.6 |
48.8 |
48.8 |
42.7 |
|
|
10.0 |
20.0 |
9.7 |
47.3 |
47.3 |
40.8 |
|
|
16.0 |
20.0 |
12.4 |
44.3 |
44.3 |
36.7 |
|
|
20.0 |
20.0 |
13.9 |
42.8 |
42.8 |
34.7 |
|
|
25.0 |
19.3 |
15.6 |
41.3 |
41.3 |
32.8 |
|
|
31.25 |
18.6 |
17.6 |
39.9 |
39.9 |
30.9 |
|
|
62.5 |
16.5 |
25.5 |
35.4 |
35.4 |
24.8 |
|
|
100.0 |
15.1 |
33.0 |
32.3 |
32.3 |
20.8 |
| |
