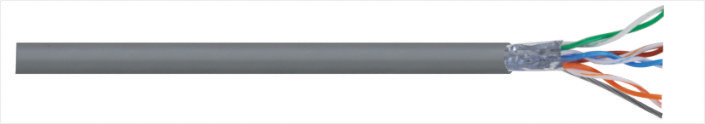

FTP CAT5E

Product Description

Rated Temperature: 600C, 750C

Inner Conductor: bare solid or stranded copper,

Insulation: color coded PE insulation;

Drain Wire: bare solid or stranded copper;

Mylar Tape: transparent PET Mylar tape overlapped;

Shield: Aluminum/Polyester Foil overlapped, 100% coverage;

Ripcord : (Optional)

Jacket : PVC.

Standards: ISO/IEC 11801,ANSI/TIA/EIA-568A



*PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.

*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances(Lead Free, Cadmium Free, Mercury Free & Chromium Free, PBB & PBDE Free)



Application

Used as work-station outlet to the FD/IDF

And other horizontal cabling, supporting TP-PMD Audio,

Integrated service digital network(ISDN),ATM155 Mbps,

100mbps TPDDI, Fast Ether-net etc.



Cable Construction (FTP CAT5E solid conductor)



Part No.

Construction

Conductor Dia.

(mm)

Core Dia.

(mm)

No. of Pairs

Shielding

Nom O.D.
(mm)

222201

FTP

0.53

1.00

4

Al Foil

6.3





ELECTRICAL CHARACTERISTICS(FTP CAT5E solid conductor)



Frequency

(MHz)

Impedance

(Ohm)

Return Loss

(dB)

Attenuation
(dB/100m)

Next Worst Pair
(dB)

Next Power

Sum (dB)

ELFEXT Worst

Pair (dB)

ELFEXT Power

Sum(dB)

Nominal Velocity

Propagation



0.772

100 15

-

1.8

67.0

64.0

66.0

63.0

0.65

1.0

20.0

2.0

65.3

62.3

63.8

60.8



4.0

23.0

4.1

56.3

53.3

51.7

48.7

8.0

24.5

5.8

51.8

48.8

45.7

42.7



10.0

25.0

6.5

50.3

47.3

43.8

40.8



16.0

25.0

8.2

47.3

44.3

39.7

36.7

20.0

25.0

9.3

45.8

42.8

37.7

34.7



25.0

24.3

10.4

44.3

41.3

35.8

32.8



31.25

23.6

11.7

42.9

39.9

33.9

30.9



62.5

21.5

17.0

38.4

35.4

27.8

24.8



100.0

20.1

22.0

35.3

32.3

23.8

20.8





CABLE CONSTRUCTION (PATCH CABLE FTP CAT5E - AWG 26)



Part No.

Specifications

Conductor Dia.

(mm)

Core Dia.

(mm)

No. of Pairs

Shielding

Nom O.D.
(mm)

222202

Patch FTP AWG26

7/0.16

0.86

4

Al Foil

5.1



ELECTRICAL CHARACTERISTICS (PATCH CABLE FTP CAT5E - AWG 26)



Frequency

(MHz)

Impedance

(Ohm)

Return Loss

(dB)

Attenuation
(dB/100m)

Next Worst Pair
(dB)

Next Power

Sum (dB)

ELFEXT Worst

Pair (dB)

ELFEXT Power

Sum(dB)

Nominal Velocity

Propagation

0.772

100 15

19.4

2.7

67.0

64.0

66.0

63.0

0.65

1.0

20.0

3.1

65.3

62.3

63.8

60.8



4.0

23.0

6.1

56.3

53.3

51.7

48.7

8.0

24.5

8.6

51.8

48.8

45.7

42.7



10.0

25.0

9.7

50.3

47.3

43.8

40.8



16.0

25.0

12.4

47.3

44.3

39.7

36.7

20.0

25.0

13.9

45.8

42.8

37.7

34.7



25.0

24.2

15.6

44.3

41.3

35.8

32.8



31.25

23.3

17.6

42.9

39.9

33.9

30.9



62.5

20.7

25.5

38.4

35.4

27.8

24.8



100.0

19.0

33.0

35.3

32.3

23.8

20.8
