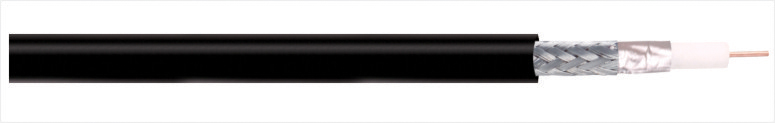

Product Description

Inner Conductor: solid Cu(Bare Copper);

Insulation: Foamed PE by gas injection(physical foamed) PE;

Outer Conductor: B-Al/PET (Bonded aluminum-PET laminated) foil  and Cu-Sn(Tinned Copper) braiding , various of coverage;

Jacket: PVC or PE

Messenger: stranded galvanized steel wire;

PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.

* Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000.

Application

For use in feeder and distribution.

Meanwhile, we can manufacture with different inner conductor(Cu, CCS, Cu-Sn), different type foil(CuF,  Cu/PET,  Al/PET,  Al/PET/Al ), different

braid(Cu, Cu-Sn, Al), different coverage , different Outer Sheath(PVC, PE, LSZH), with or without Galvanized Steel Messenger according to your

requirements.

Note

PE: Polyethylene

PEE/PH: Foamed Polyethylene by Gas injection

PVC: Polyethilchloride

Al: Aluminum

Cu: Bare Copper

Cu-Sn: Tinned Copper

CCS: Copper Clad Steel(Copperweld)

PET: Polyester foil

CuF: Overlapped longitudinally Copper foil

Cu/PET: Overlapped longitudinally Copper+PET foil

Al/PET: Overlapped longitudinally Al+PET foil

Al/PET/Al: Overlapped longitudinally AL+PET+AL foil

Ø Nominal Diameter
