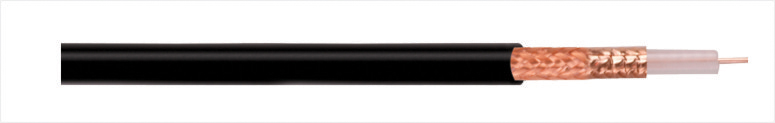

Product Description
Inner Conductor: Bare Copper;
Insulation: 5 Cell Semi air spaced PE or Foamed PE;
Outer Conductor: Bare Copper Tape or Aluminium/Polyester Tape shield(coverage 100%) and Bare Copper braiding, various of coverage;
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) , RBS* and Duct version is available, too.
*RBS is co-extruded polyethylene and polypropylene Dual sheathed, used in outdoor, underground duct or direct burial applications.
RoHS Complaints(2002/95/EC)
Application
For a lower attenuation for distribution use in IRS. MATV and CATV systems where it is not essential to limit the overall diameter of the cable. The high level of copper screen allows the cables to be installed with confidence inside buildings where the most signal ingress and disruption usually occurs.
Distribution/Satellite Cable (Double Screen)
|
Part No. |
Specifications |
Inner conductor |
Dielectric |
Outer Conductor |
Outer Sheath |
Specification
Sheet |
|
No./mm |
MTR |
Foil |
Braid |
Coverage |
Nom. Dia. |
MTR |
|
mm |
|
112201 |
CT125 |
1/1.25 |
BC |
Semi Air spaced PE |
Cu Tape |
BC |
60% |
7.80 |
PVC |
 |
|
112202 |
CT125PE |
1/1.25 |
BC |
Semi Air spaced PE |
Cu Tape |
BC |
60% |
7.80 |
PE |
|
|
112203 |
CT125RBS |
1/1.25 |
BC |
Semi Air spaced PE |
Cu Tape |
BC |
60% |
9.60 |
RBS |
|
|
112204 |
CTF125 |
1/1.25 |
BC |
Foamed PE |
Cu Tape |
BC |
60% |
7.80 |
PVC |
|
|
112205 |
CTF125PE |
1/1.25 |
BC |
Foamed PE |
Cu Tape |
BC |
60% |
7.80 |
PE |
|
|
112206 |
CTF125RBS |
1/1.25 |
BC |
Foamed PE |
Cu Tape |
BC |
60% |
9.60 |
RBS |
|
|
112207 |
CT167 |
1/1.67 |
BC |
Semi Air spaced PE |
Cu Tape |
BC |
60% |
10.10 |
PE |
|
|
112208 |
CT167RBS |
1/1.67 |
BC |
Semi Air spaced PE |
Cu Tape |
BC |
60% |
11.50 |
RBS |
|
|
112209 |
CTF167 |
1/1.67 |
BC |
Foamed PE |
Cu Tape |
BC |
60% |
10.10 |
PE |
|
|
112210 |
CTF167RBS |
1/1.67 |
BC |
Foamed PE |
Cu Tape |
BC |
60% |
11.50 |
RBS |
|
|
112211 |
CT233 |
1/2.33 |
BC |
Semi Air spaced PE |
Cu Tape |
BC |
60% |
13.00 |
PE |
|
|
112212 |
CTF233 |
1/2.33 |
BC |
Foamed PE |
Cu Tape |
BC |
60% |
13.00 |
PE |
|
Note
* BC is bare copper
* Cu Tape is bare copper tape;
*RBS is co-extruded polyethylene and polypropylene Dual sheathed. |
