Product Description

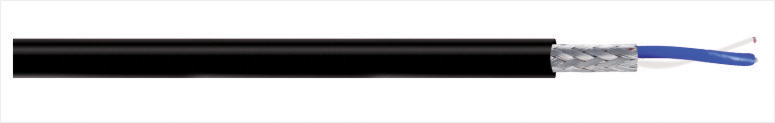

60°C MICROPHONE CABLES
Inner Conductor: Tinned Copper
Insulation: Color-Coded PE, Color Code: Chart F
Wrap: Overall Clear Polyester tape overlapped
Shield: One Conductor - Spiral Wrapped
Two Conductors ? Tinned Copper Braid(Coverage 90%)
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Applications
One Conductor : All high performance microphones
Two Conductors: All low impedance microphones
Specifications 60°C
|
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
Number of
Conductor |
Insulation
Thickness |
Jacket |
Rated
Voltage |
Nominal
Cap. pF/Ft |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
133701 |
|
1702 |
|
26AWG(7/0.16mm) |
1 |
0.41mm |
0.50mm |
2.80mm |
1000 |
38 |
 |
|
133702 |
|
1703 |
|
24AWG(10/0.20mm) |
1 |
0.50mm |
0.76mm |
3.70mm |
3500 |
35 |
 |
|
133703 |
|
1705 |
|
24AWG(10/0.20mm) |
1 |
0.41mm |
0.50mm |
2.80mm |
1000 |
45 |
 |
|
133704 |
|
1706 |
|
20AWG(26/0.32mm) |
1 |
0.76mm |
0.76mm |
4.50mm |
4000 |
36 |
 |
|
133705 |
|
1709 |
|
24AWG(10/0.20mm) |
2 |
0.41mm |
0.76mm |
4.80mm |
1000 |
38 |
 |
|
133706 |
8442 |
1710 |
|
22AWG(19/0.254mm) |
2 |
0.63mm |
0.63mm |
5.80mm |
1000 |
31 |
 |
|
133707 |
|
1712 |
|
20AWG(26/0.32mm) |
2 |
0.38mm |
0.76mm |
6.00m |
600 |
45 |
 | |
