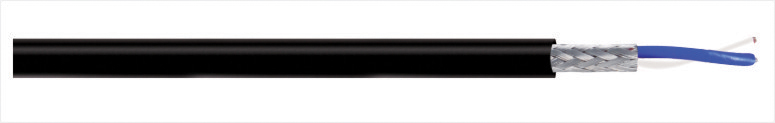

Product Description
60°C
Inner Conductor: Bare Copper
Insulation: Color-Coded PE,
Color Code:
Two Conductors 1-White, 2-Blue
Four Conductors 2 Conductors Blue, 2 Conductors White
Shield: Tinned Copper Braid(Coverage 95%)
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Applications
For audio, control and instrumentation equipment and appliances.
Specifications 60°C
|
Part No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
Number of
Conductor |
Insulation
Thickness |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
133801 |
|
1771 |
|
23AWG(60/0.08mm) |
2 |
0.51 |
1.02 |
6.00 |
 |
|
133802 |
|
1772 |
|
24AWG(40/0.08mm) |
4 |
0.36 |
1.18 |
6.00 |
 |
|
