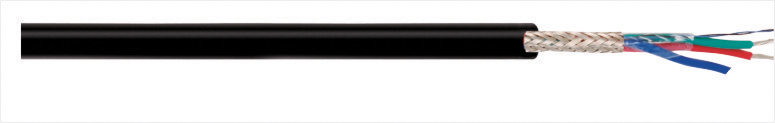

Product Description
Rated Voltage 440V , Rated Temperature 70°C ,
Inner Conductor: 0.50mm2 (16/0.20mm) Stranded Tinned Annealed Copper;
Insulation: Color-Coded PVC, Nominal thickness: 0.45mm, Minimum thickness: 0.35mm;
Core Diameter: Nominal 1.83mm, Minimum /Maximum: 1.75mm/1.90mm;
Wrap: Overall Clear Polyester tape overlapped;
Shield: Tinned Copper Braid(Coverage 93%)
Marker Thread：Be Laid Longitudinally beneath the wrap tape;
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Duct version is available, too.
RoHS Complaints(2002/95/EC)
Application
For interconnections between and within instruments and electrical equipment for such applications as data transmission and process control.
Technical Data
Maximum conductor temperature: +700C.
Current rating: Maximum 2.5A per core, Maximum working voltage: (U0/U): 440V r.m.s. at frequency up to 1600Hz;
Maximum conductor resistance: 40.1Ω/km at 200C, Maximum insulation resistance: 100MΩ/km at 200C.
Specifications according to Deference Standard 61-12 Part5 16-2-*C 440V 70°C
|
Part
No. |
Def Stan.
Reference |
NatoStock No.
6145-99-110 |
Number of
Conductor |
Jacket Thickness(mm) |
Overall Diameter(mm) |
Specifications
Sheet |
|
Nominal |
Min.at any point |
Nominal |
Min. |
Max. |
|
134101 |
16-2-2C |
6717 |
2 |
0.90 |
0.60 |
5.5 |
5.1 |
5.9 |
|
|
134102 |
16-2-3C |
6724 |
3 |
0.90 |
0.60 |
5.8 |
5.4 |
6.2 |
|
|
134103 |
16-2-4C |
6728 |
4 |
0.90 |
0.60 |
6.3 |
5.9 |
6.7 |
|
|
134104 |
16-2-6C |
6735 |
6 |
0.90 |
0.60 |
7.3 |
6.9 |
7.7 |
|
|
134106 |
16-2-8C |
|
8 |
0.90 |
0.60 |
8.6 |
8.1 |
8.9 |
|
|
134107 |
16-2-10C |
6742 |
10 |
0.90 |
0.60 |
9.2 |
8.8 |
9.6 |
|
|
134108 |
16-2-12C |
6745 |
12 |
0.90 |
0.60 |
9.5 |
9.1 |
9.9 |
|
|
134109 |
16-2-18C |
6751 |
18 |
0.90 |
0.60 |
11.0 |
10.5 |
11.5 |
|
|
134110 |
16-2-25C |
6758 |
25 |
0.90 |
0.60 |
13.1 |
12.6 |
13.6 |
|
|
134111 |
16-2-36C |
6760 |
36 |
0.90 |
0.60 |
16.1 |
15.5 |
16.7 |
|
Insulation Identification
|
Cores
No. |
Colour |
Cores
No. |
Colour |
Cores
No. |
Colour |
Cores
No. |
Colour |
|
1 |
Red |
10 |
Pink |
19 |
YELLOW/Blue |
28 |
ORANGE/Green |
|
2 |
Blue |
11 |
Turquoise |
20 |
WHITE/Blue |
29 |
GREY/Green |
|
3 |
Green |
12 |
Grey |
21 |
BLUE/Black |
30 |
YELLOW/Brown |
|
4 |
Yellow |
13 |
RED/Blue |
22 |
ORANGE/Blue |
31 |
WHITE/Brown |
|
5 |
White |
14 |
GREEN/Red |
23 |
GREEN/Blue |
32 |
BROWN/Black |
|
6 |
Black |
15 |
YELLOW/Red |
24 |
GREY/Blue |
33 |
GREY/Brown |
|
7 |
Brown |
16 |
WHITE/Red |
25 |
YELLOW/Green |
34 |
YELLOW/Violet |
|
8 |
Violet |
17 |
RED/Black |
26 |
WHITE/Green |
35 |
VIOLET/Black |
|
9 |
Orange |
18 |
RED/Brown |
27 |
GREEN/Black |
36 |
WHITE/Violet |
NOTE
For bi-coloured cores the base colour is shown in capitals. Cables with more than 36 cores have a Red and a Blue core laid adjacent to one another in each layer, the remainder of the cores being White.
|
