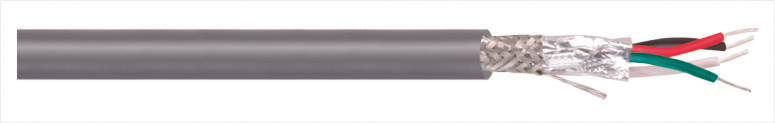

Product Description
Rated Voltage 300V , Rated Temperature 80°C
Inner Conductor: Tinned Copper
Insulation: Color-Coded Foam PE, Color Code: over 10cores Chart F, Not more than 10cores
1-Black, 2-White,3-Red,4-Green, 5-Brown,6-Blue,7-Orange,8-Yellow,9-Violet,10-Grey
Shield: Overall Aluminum/Polyester Foil overlapped, Foil Facing Outward and overall Tinned Copper Braid(Coverage 65%)
Drain Wire: 24AWG(7/0.20mm) Stranded Tinned Copper
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Applications
EIA RS-232C Interface
EIA RS-423 Interface
CAD/CAM Applications
Specifications according to UL2919, 300V 80°C
|
Part No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Conductor |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
|
135201 |
9925 |
6351 |
|
24AWG(7/0.20mm) |
3 |
0.89 |
5.40 |
 |
|
135202 |
9927 |
6352 |
|
24AWG(7/0.20mm) |
4 |
0.89 |
5.80 |
 |
|
135203 |
9929 |
6353 |
|
24AWG(7/0.20mm) |
5 |
0.89 |
6.20 |
 |
|
135204 |
9931 |
6354 |
|
24AWG(7/0.20mm) |
6 |
0.89 |
6.70 |
 |
|
135205 |
9932 |
6355 |
|
24AWG(7/0.20mm) |
7 |
0.89 |
6.70 |
 |
|
135206 |
9933 |
6556 |
|
24AWG(7/0.20mm) |
8 |
0.89 |
7.10 |
 |
|
135207 |
9934 |
6357 |
|
24AWG(7/0.20mm) |
9 |
0.89 |
7.60 |
 |
|
135208 |
9935 |
6358 |
|
24AWG(7/0.20mm) |
10 |
0.89 |
7.80 |
 |
|
135209 |
9936 |
6359 |
|
24AWG(7/0.20mm) |
15 |
0.89 |
8.90 |
 |
|
135210 |
9937 |
6360 |
|
24AWG(7/0.20mm) |
25 |
0.89 |
11.30 |
 |
|
135211 |
9938 |
6361 |
|
24AWG(7/0.20mm) |
37 |
0.89 |
13.10 |
 | |
