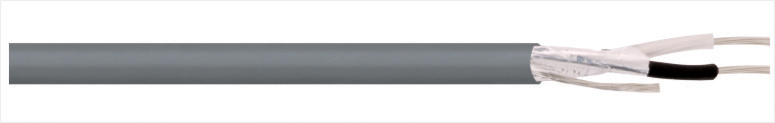

Product Description
Rated Voltage 600V , Rated Temperature 80°C
Inner Conductor: Tinned Copper
Insulation: Color-Coded PE, Color Code: Black,Clear
Shield: Overall Aluminum/Polyester Foil overlapped, Foil Facing Outward.
Drain Wire: Stranded Tinned Copper
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
Audio, Pulse or RF Signal Transmission
Computer or Electronic Peripheral Interconnectors Where High Levels of Noise Interference Are Anticipated
Banking System
Specifications according to UL2016 600V 80°C
|
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No.of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
|
Nom.
Thick |
Nom.
Dia. |
|
|
mm |
|
|
mm |
mm |
|
|
142601 |
8719 |
2471 |
C2536 |
16AWG(19/0.287mm) |
1 |
0.81 |
18AWG(19/0.254mm) |
0.81 |
7.7 |
 |
|
|
142602 |
8720 |
2472 |
|
14AWG(19/0.361mm) |
1 |
0.81 |
16AWG(19/0.287mm) |
0.81 |
8.6 |
 |
|
|
142603 |
8718 |
2473 |
|
12AWG(19/0.455mm) |
1 |
0.94 |
14AWG(19/0.361mm) |
0.89 |
10.1 |
 |
|
Note
C to C is Conductor D.R. to Conductor D.R.
CtoC + Sh is Conductor D.R. to Conductor D.R. & Shield. |
