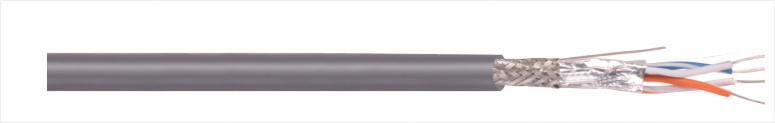

Product Description
Rated Voltage 300V , Rated Temperature 80°C
Inner Conductor: Tinned Copper
Insulation: Color-Coded PE,
Color Code: Chart M for Mutipair Cable of conductor 24AWG(7/0.20mm),
Shield: Overall Aluminum/Polyester Foil overlapped and Overall Tinned Copper Braid(Coverage 65% or 90%), Foil Facing Outward.
Drain Wire: Stranded Tinned Copper.
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
EIA RS-485
CAD/CAM System
Specifications according to UL2919, 300V 80°C
|
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No.of
Pairs |
Braid
Coverage |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
|
143301 |
9829 |
6401 |
|
24AWG(7/0.20mm) |
2 |
65% |
24AWG(7/0.20mm) |
0.89 |
7.30 |
 |
|
143302 |
9830 |
6402 |
|
24AWG(7/0.20mm) |
3 |
65% |
24AWG(7/0.20mm) |
0.89 |
7.70 |
 |
|
143303 |
9831 |
6403 |
|
24AWG(7/0.20mm) |
4 |
65% |
24AWG(7/0.20mm) |
0.89 |
8.30 |
 |
|
143304 |
9832 |
6404 |
|
24AWG(7/0.20mm) |
5 |
65% |
24AWG(7/0.20mm) |
0.89 |
8.50 |
 |
|
143305 |
|
6405 |
|
24AWG(7/0.20mm) |
6 |
65% |
24AWG(7/0.20mm) |
0.89 |
9.20 |
 |
|
143306 |
9833 |
6406 |
|
24AWG(7/0.20mm) |
7 |
65% |
24AWG(7/0.20mm) |
0.89 |
9.20 |
 |
|
143307 |
9834 |
6407 |
|
24AWG(7/0.20mm) |
9 |
65% |
24AWG(7/0.20mm) |
0.89 |
10.60 |
 |
|
143308 |
9835 |
6408 |
|
24AWG(7/0.20mm) |
10 |
65% |
24AWG(7/0.20mm) |
0.89 |
11.40 |
 |
|
143309 |
9836 |
6409 |
|
24AWG(7/0.20mm) |
12 |
65% |
24AWG(7/0.20mm) |
0.89 |
11.70 |
 |
|
143310 |
9837 |
6410 |
|
24AWG(7/0.20mm) |
18 |
65% |
24AWG(7/0.20mm) |
1.14 |
14.40 |
 |
|
143311 |
9838 |
6411 |
|
24AWG(7/0.20mm) |
25 |
65% |
24AWG(7/0.20mm) |
1.14 |
17.00 |
 |
|
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Pairs |
Braid
Coverage |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dian. |
|
mm |
mm |
|
143312 |
9841 |
6412 |
|
24AWG(7/0.20mm) |
1 |
90% |
24AWG(7/0.20mm) |
0.89 |
5.10 |
 |
|
143313 |
9842 |
6413 |
|
24AWG(7/0.20mm) |
2 |
90% |
24AWG(7/0.20mm) |
0.89 |
7.10 |
 |
|
143314 |
9843 |
6414 |
|
24AWG(7/0.20mm) |
3 |
90% |
24AWG(7/0.20mm) |
0.89 |
7.60 |
 |
|
143315 |
9844 |
6415 |
|
24AWG(7/0.20mm) |
4 |
90% |
24AWG(7/0.20mm) |
0.89 |
8.20 |
 |
|
Part No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No. of
Pairs |
Braid
Coverage |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
|
143316 |
|
3492C |
|
28AWG(7/0.13mm) |
2 |
65% |
28AWG(7/0.13mm) |
0.89 |
5.90 |
 |
|
143317 |
|
3493C |
|
28AWG(7/0.13mm) |
3 |
65% |
28AWG(7/0.13mm) |
0.89 |
6.80 |
 |
|
143318 |
|
3494C |
|
28AWG(7/0.13mm) |
4 |
65% |
28AWG(7/0.13mm) |
0.89 |
7.30 |
 |
|
143319 |
|
3495C |
|
28AWG(7/0.13mm) |
5 |
65% |
28AWG(7/0.13mm) |
0.89 |
7.60 |
 |
|
143320 |
|
3496C |
|
28AWG(7/0.13mm) |
6 |
65% |
28AWG(7/0.13mm) |
0.89 |
7.60 |
 |
|
143321 |
|
3498C |
|
28AWG(7/0.13mm) |
8 |
65% |
28AWG(7/0.13mm) |
0.89 |
8.30 |
 |
|
143322 |
|
3500/12C |
|
28AWG(7/0.13mm) |
121/2 |
65% |
28AWG(7/0.13mm) |
0.89 |
10.30 |
 |
|
143323 |
|
3500/18C |
|
28AWG(7/0.13mm) |
18 |
65% |
28AWG(7/0.13mm) |
0.89 |
11.80 |
 |
|
143324 |
|
3500/25C |
|
28AWG(7/0.13mm) |
25 |
65% |
28AWG(7/0.13mm) |
0.89 |
14.30 |
 |
|
