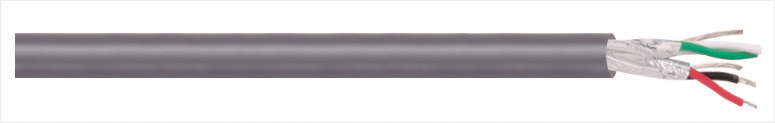

Product Description
Rated Voltage 300V , Rated Temperature 80°C
Inner Conductor: Tinned Copper
Insulation: Color-Coded SR-PVC, Color Code: Black/Red, Green/White
Shield: Individually pair Aluminum/Polyester Foil overlapped, Foil Facing In.
Drain Wire: 22AWG(7/0.254mm) Stranded Tinned Copper for Each Pair.
Jacket: PVC
PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
For audio, control and instrumentation equipment and appliances.
Specifications according to UL2464, 300V 80°C
|
Part
No. |
Belden
Part No. |
Alpha
Part No. |
Carol
Part No. |
Conductor
(Stranded) |
No.of
Pairs |
Insulation
Thickness |
Drain Wire
(Stranded) |
Jacket |
Specification
Sheet |
|
|
Nom.
Thick |
Nom.
Dia. |
|
|
mm |
|
|
mm |
mm |
|
|
144401 |
9402 |
6414 |
|
20AWG
(7/0.32mm) |
2 |
0.254 |
22AWG
(7/0.254mm) |
1.09 |
7.60 |
 |
|
|
